NOFISOL® Seal S 100/20

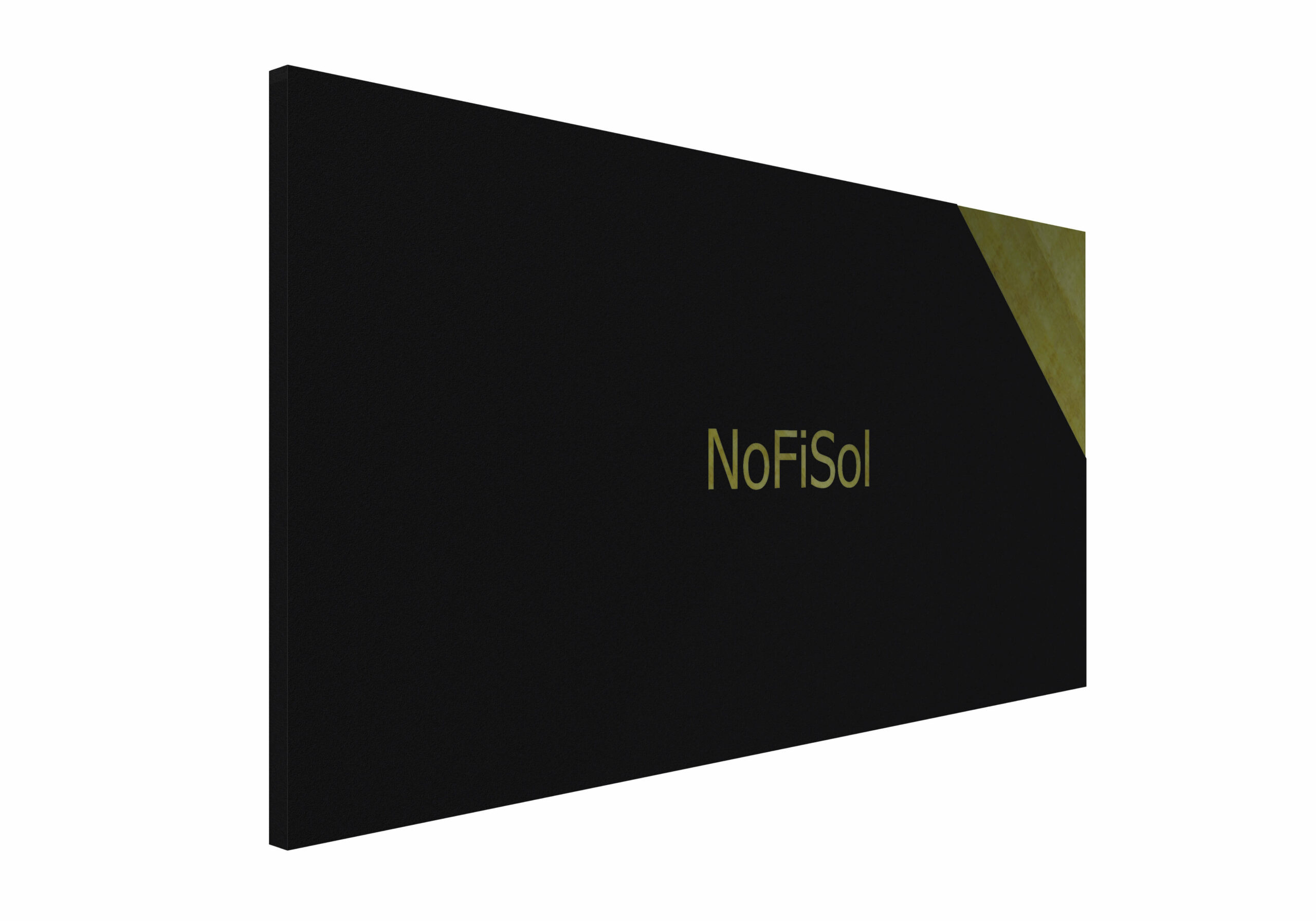

NOFISOL® Seal S 100/20 is composed of stonewool and is completely sealed with a thin, black acoustic open PE film. The acoustic black inlay board is applied above framework, lamellar, open lath and metal ceilings, where high acoustic and fire protection requirements are required. The board is not self-supporting and therefore not suitable for use in a profile system without supporting sub-structure.
Dimensions
| Thickness | 20 mm |
| Length | 1200 /600 mm |
| Width | 600 mm |
Sound absorption
| Ceiling | 125Hz | 250Hz | 500Hz | 1kHz | 2kHz | 4kHz |
|---|---|---|---|---|---|---|
| 1/3 Oct. | 0.13 0.33 0.49 | 0.51 0.70 0.85 | 0.94 0.90 0.97 | 0.94 0.87 0.81 | 0.93 1.00 1.00 | 0.98 0.90 0.82 |
| 1/1 Oct. | 0.32 | 0.69 | 0.94 | 0.87 | 0.98 | 0.90 |
Absorption – Class A
αw (ISO 11654) – 0.90
SAA (ASTM-C423) – 0.87
| Wall | 125Hz | 250Hz | 500Hz | 1kHz | 2kHz | 4kHz |
|---|---|---|---|---|---|---|
| 1/3 Oct. | 0.02 0.06 0.08 | 0.08 0.16 0.27 | 0.39 0.50 0.63 | 0.69 0.77 0.86 | 0.92 0.95 0.96 | 0.92 0.89 0.81 |
| 1/1 Oct. | 0.5 | 0.17 | 0.51 | 0.77 | 0.94 | 0.87 |
Absorption – Class D
αw (ISO 11654) – 0.45
SAA (ASTM-C423) – 0.60
Sustainability
Product Details
| Density stonewool | 100 kg/m3 |
| Foil | Black HDPE foil Micro perforated |
Smoke & Fire behaviour
| Euro Fire Class* | |
| Stonewool | A1 |
| HDPE Foil | B-s1,d0 |
* According to individual specifications from the stone wool and HDPE Foil manufacturer
